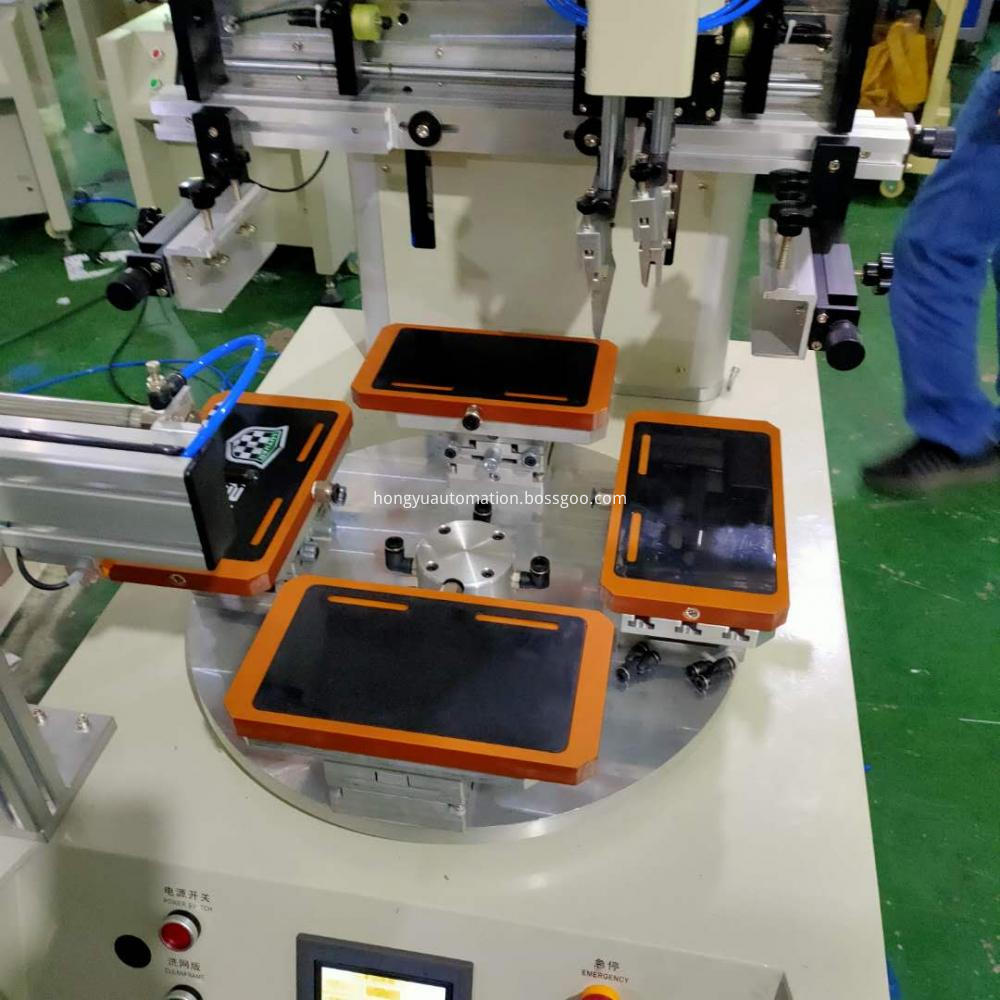

Rotary table screen printing machine with downloading device

  • Rotary table screen printing machine with downloading device
  • Rotary table screen printing machine with downloading device
  • Rotary table screen printing machine with downloading device
  • Rotary table screen printing machine with downloading device

Rotary table screen printing machine with downloading device

    Packaging: plywood case
    Productivity: 30
    Brand: Hy
    Transportation: Ocean
    Place of Origin: china
    Supply Ability: 30
    Certificate: ce
    Port: GZ

Product Description

Rotary Table screen printing machine with downloading device

Rotary Table Screen Printing Machine 2

Advantage

1. Microcomputer system control, offer multifunction setting, keep working date.
2. Two column lift structure, stable and high accuracy.
3. Work table use precision Taiwan Cam indexer, accurate location, fast and stable printing.
4. Screen frame can be adjusted by left/right, front/back, up/down or level orientation.
5. Scraper constant pressure device to ensure the stability of the pressure.
6. Equipped with CEC shock absorber, precise and stable printing for multi-color
7. Emergency switch, safe return system and automatic debug warning, safety protection.
8. Action model: fully auto/semi-auto/manual.
9. Scraper pressure control: constant pressure by regulator valve.
10. Switch on: panel/pedal
11. Left/right driving style: by electric
12: Up/down driving style: by pneumatic

Rotary Screen Printer 2

Model No 2030XT

Worktable size Φ600mm

Max. printing area 200*300mm

Max frame size 300*500mm

Printing speed 2800 times/hr

Max height of work piece 60mm

Transverse stroke 400mm

Vertical stroke 100mm

Air pressure 5~7bar

Voltage 110V/220V 50/60 HZ40W

Machine size 1200*1000*1500mm

Rotary Screen Printer 11

Dongguan Hongyu Automation Technology Co. Ltd

 Dongguan HongYu Automation Technology Co., Ltd. is a professional manufacturer of automation equipment. We produce screen printing machine, pad printing machine, hot stamping machine and other related equipment, Specilize in automatic screen printing and pad printing equipment, which can meet the printing requirements for various shapes and materials and highly improve production with best printing quality, HongYu Machine is widely used in daily necessities, food, cosmetics, medical supplies, auto parts and other fields and industries. Our equipment are exported to Europe, the United States, South Korea, the Middle East, South Africa, Mexico and other countries and regions, deeply trusted by customers at domestic and abroad. HongYu Automation Technology Co., Ltd provides edge technology of Smart Engineering, Machinery, and Manufacturing on the production of automatic screen printing machines
