High Quality Diesel Fork Lift, Diesel Forklift, 3 Ton Forklift Suppliers in China

Home > Products > Other Valves & Parts > SNSC 3 Ton Diesel Forklift

SNSC 3 Ton Diesel Forklift

  • SNSC 3 Ton Diesel Forklift
  • SNSC 3 Ton Diesel Forklift
  • SNSC 3 Ton Diesel Forklift

SNSC 3 Ton Diesel Forklift

    Payment Type: L/C,T/T,D/P,Paypal,Western Union
    Terms of Trade: FOB,CFR,CIF,FCA
    Min. Order: 1 Set/Sets
    Delivery Time: 28 Days
    Packaging: Nude Packaging
    Productivity: 12000units/year
    Brand: SNSC
    Transportation: Ocean
    Place of Origin: China(Mainland)
    Supply Ability: 220units/week
    Certificate: CE/ ISO9001/ GHOST
    HS Code: 842710900
    Port: ,,

Basic Info

Model No.: FD30

Product Description

3 Ton Diesel Forklift wtih Japan ISUZU C240 Engine, Material Handling Equipment hot sale,
China new Fork Lift Hydraulic System is Japan Shimadzu Pump &Multitandem Valves, USA Eaton Steering Gear

Mast can do 3-Stages 7 Meters Lifting Height on Counter Balance Forklift.

Chariot Elevateur Montacargas exported to Peru, Argentina, Chile and more South America Market

Welcome to visit our website www.snsc-group.com

diesel forklift (6)

Specifications of 3T Diesel Forklift

No. Specifications Unit FD30
1 Power
2 Rated Capacity kg 3000
3 Center of load mm 500
4 Lifting height mm 3000
5 Free lifting height mm 145
6 Forks L×W×H mm 1070x125x45
7 Tilt Forward/Backward ° 6/12
8 Min.turning radius mm 2700
9 Min.ground clearance(Mast) mm 120
10 Overhead guard height mm 2090
11 Height from seat to overhead guard mm 1005
12 Front overhang mm 483
13 Max.traveling speed(loaded) km/h 20
14 Max.lifting speed (loaded/empty) mm/s 430/530
15 Drawbar pull/Gradeability kN/% 18/20
16 Overall length (without fork) mm 2790
17 Overall width mm 1230
18 Mast lowered height mm 2055
19 Mast extended height mm 4260
20 Tire Front
22 Wheelbase mm 1800
23 Tread width Front/Rear mm 1000/970
24 Curb weight None-load kg 4150
25 Battery Voltage/Capacity V/Ah 12/90
26 Engine Model
27 Rated power kw/r.p.m 34.3/2500
28 Rated torque Nm/r.p.m 137.7/1800
29 Cylinder amount
30 Bore×Stroke mm 86*102
31 Displacement L 2.369
32 Fuel tank L 70
33 Transmission
1/1 Powershift
34 Working pressure MPa 17.5

Search Mariah Tang Forklift on YouTube, Many VIDEO for your review.

Wechat/ WhatsAPP/ Skype +86 15966060602

Mariah Tang on Google+ Facebook Linkedin ... Social Network Site (SNS)

Configurations On Your Forklift
SNSC VIP Customize&Design for Your Work Condition, Optional
Engine (made in Japan) ISUZU, Yanmar, Mitsubishi, Nissan
Special Engine for USA market PSI, Konler (EPA Certificates)
Mast 3m to 7m lifting, 2-stage&3-stages 3-stages full free mast for indide container
Solid Tires prolong service life
Double Front Tires increase stability, design for higher lifting height
Fork Length customize according to pallet size in local
Fork Sleeves help one forklift service different pallets,high-efficiency
Backrest Dimension customize for Empty Lifting Container
Side Shifter Function forks can move together on left or right
Cabin for special climate country/area A/C(cool)&Heater(hot) for your choice
Color&Logo absolutely meet your requirements
Double Filter design for dusty work condition

SNSC Forklift Service

all our Forklift have passed all kinds of international certificates, such as?CE, ISO, GHOST Certificates.Forklifts' Quality definitely guaranteed.

2.Clearance Custom Documents
we have professional experienced operator to prepare special documents according to your country custom,such as CIQ,SASO,CCPIT CI,EPA...

3.Spare Parts
professional engineer solve questions with you together,confirm telephone,photos,video and directly video on wechat to confirm exact problem, then express parts by DHL, arrive at your hands within 3 days.

4.Maintenance&Repair Manual
attach manuals with forklift together for you and workers review.
SNSC Forklift

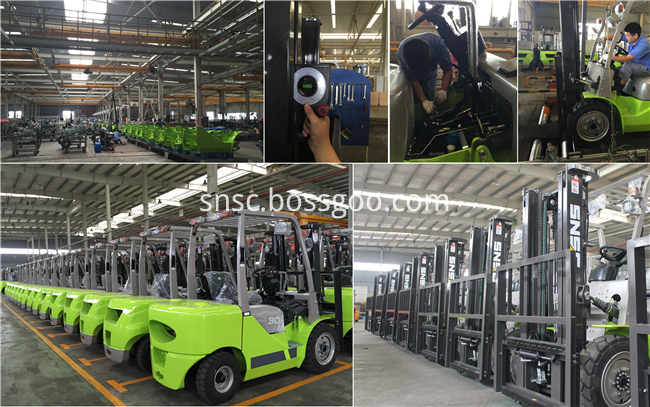

SNSC Factory Production Line & Strict Trial

. professional technology workers preparing mini parts from steel plate
. welding robot & workers` technology for oil tank and other details on forklift
. every parts,frame passed six times paint,finish bright color
. quality department do tires,mast angel,brake line,climbing,lifting trial running
. Please check VIDEO on YOUTUBE, search Mariah Tang Forklift.
diesel forklift manufacture snsc china fork lifting truck suppliers mariah tang

Packaging & Shipping

Tool Box, Forklift Catalogue, Gloves, Manuals of Operation and Maintenance, Fork, Spare Parts, we will send with forklift together.

For 3 Tons Diesel Forklift,shipping terms depends on quantity.
1 Unit we choose LCL( less than container load) in Shanghai Port;
More Units we choose shipping by Container.
20'GP can Load 2 Units,40'GP can Load 4 Units

mariah tang forklift

1.Which countries do we export to?
Asia: Vietnam, India, Indonesia, Pakistan, Kazakhstan, Uzbekistan, etc.
Europe: Russia, Belarus, Ukraine, Lithuania, Saudi Arabia, etc.?
South America: Brazil, Chile, Paraguay, Argentina, etc.
Africa: South Africa, Ethiopia, Libya, etc.?

2.What are our advantages compared with other manufacturers/factories?
1)Reliable Quality: Carefully select regular manufacturers for supporting spare parts, like engines, bridge, transmissions, and many parts designed and produced by ourselves, always adapting the best materials.?
2)Competitive Price: Concentration of mechanized production in large quantities reduce production costs to ensure that our price is competitive.
3)Service Team: First, our sales managers are working 24 hours one day, ready to answer your questions at any time. Second, professional maintenance team with senior technicians, ready to provide support services to users and dealers. Most problems can be solved within 24 hours.
4)Fast Delivery: Under normal circumstances, we can delivery with 10 working days in factory after receiving pre-payment.?

3.Which payment terms can we accept?
Normally we can work on T/T or L/C.
1)On T/T term, 30% payment is required in advance for production, 70% balance shall be paid before delivery or against the copy of original B/L for old long cooperation clients.
2)On L/C term, 100% irrevocable L/C at sight without [soft clauses" can be accepted.?

4.Which INCOTERMS 2010 we can work?
As a professional experienced supplier, we can handle all INCOTERMS 2010 terms, and we normally work on FOB, CFR, CIF, DAP, FCA, EXW etc.

5.What logistics ways we can work for delivery?
1) For most Europe, South America and Africa etc. countries we can go by container or Roro through ocean freight.?
2) For neighborhood countries of China, such as Russia, Vietnam, Kazakhstan, Uzbekistan etc. we can delivery by road or railway.
3) For light spare parts in urgent requirement, we can send it by international courier service, such as DHL, TNT, EMS or other air transportation.?

6.How long is the validity of our quotation?
As a reliable supplier, basically our price remains stable through one year, we only adjust our price based on two situations:
1)The rate of USD
2)The price of material

snsc forklift manufacture mariah tang fork-lift trucks

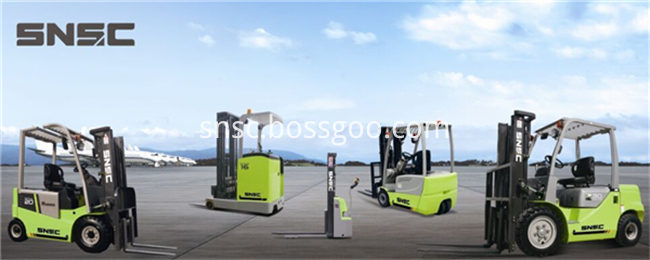

SNSC Forklift Range
1.Diesel Forklift Truck Range from 1 to 10tons; (FD30,FD35,FD40,FD45,FD50,FD60,FD70)
2.Electric Forklift Truck Range from 1.5 to 3.5tons; (FB15, FB20, FB25, FB30, FB35)
3.LPG&Gasoline Forklifts Range from 1.5 to 3.5tons; (FL15, FL20, FL25, FL30, FL35)
4.Warehouse Logistic Forklift 1 to 3tons Reach Truck / Pallet Truck / Stacker ; (YB16,YB20,DB16,DB20)

VIDEO Mariah Tang Forklift on YouTube
Wechat/WhatsApp +86 159 6606 0602

Jinan Shine International Trade Co.,Ltd


Jinan Shine International is located in Jinan city, Shandong Province, P. R. China which is engaged in exporting forklift, heavy duty truck parts, construction machinery parts and automobile parts service. With sound accessories service system and strong support based on Ro-Ro shipment keep us moving forward constantly.

Being a large enterprise group with professional service and timely maritime transportation, SHINE INTERNATIONAL has established a complete sales system which is focused on marketing SINOTRUK, SHACMAN and FAW heavy duty trucks and parts, XCMG, LONKING, LIUGONG, SDLG, SEM construction machinery parts based on wheel loader, excavator, road roller, motor grader, bulldozer and CHERY, LIFAN, JAC auto car parts etc. Our products have been exported to more than 80 countries and regions with high evaluation already.

Adhering to the core values of "honest, enterprising, innovative, win-win" and aims to continue developing integrated business export platform, we have succeed set up after sales facilities center in Algeria and Brazil and Pakistan which enables our business goes smoothly, Facing the challenge of economic globalization, SHINE INTERNATIONAL with her brand of SNSC will take our advantage to become an international standardized automobile enterprise in China and sincerely look forward to co-operating with you!
